IK-Y9SL

Detail

Model:Y9SLVersionBandWiFi4G
NetworkWireless WiFi frequency2.4 GHzIEEE802.11b, 802.11g, 802.11n DraftSupportN/A
5.0 GHzN/AN/AN/A
4G nano SIM cardSoutheast AsiaB1/B3/B5/B8/B34/B38/B39/B40/B41N/ASupport
AustraliaB1/B2/B3/B4/B5/B7/B8/B28/B40/B66N/ASupport
JapanB1/B3/B8/B18/B19/B26N/ASupport
AmericaB2/B4/B5/B12/B13/B25/B26N/ASupport
EuropeB1/B3/B5/B7/B8/B20   N/ASupport
VideoMaster sensor1296Plngenic T31ZL+2063
1440Plngenic T31ZX+4653
ResolutionMain stream: 1920x1080@15fps, Sub stream: 640x360@15fps
FormatCompression formatH.265
Video file formatMP4
Lens4mm F2.0 lens, Low lux., wide view angle: 120 degrees. 4X digital zoom

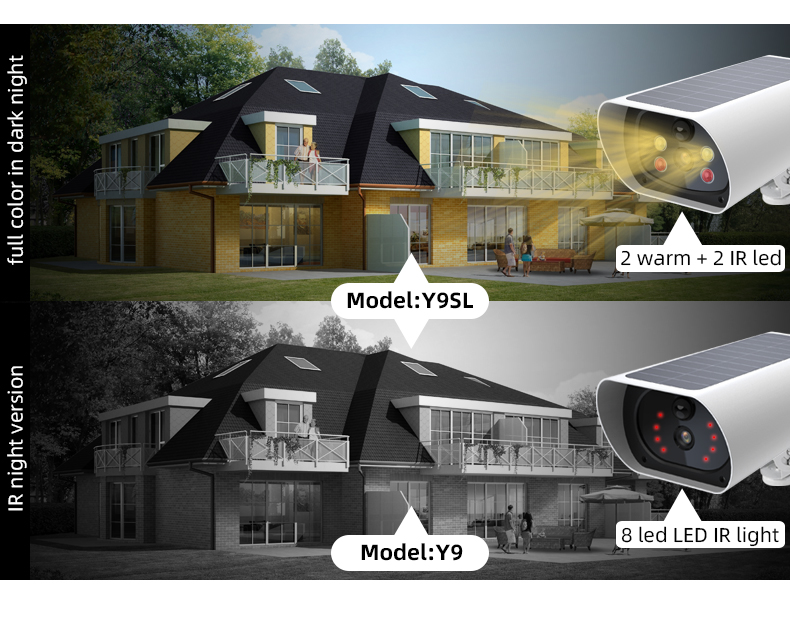

Night vision4pcs array infrared LEDs, night vision distance 20m. Full-colorful day/night
AudioCompressionG.726/AAC.   Audio code rate: 8Kbps, 16bit
Input/OutputBuilt-in MIC and Speakers, support two way audio
AlarmPIR motion detectionSupport max 7 meters PIR detection range.
Alarm linkageAlarm   record videos to Micro SD card;Alarm mobile phone message push
Video storageMemory cardSupport up to 128G micro SD card. Support cloud storage
RecordPIR alarm recording.
ReplaySupport App remote play and download the video
Power supplySolar panelsCamera:1.3W+Panel:3.3W monocrystalline silicon solar panel
BatteryBuilt-in 4 pcs 18650 battery, total volume max 12800mAh
Operating modeLow power working mode
Wake-up methodPIR alarm wake up, remote manual wake up
HibernationWhen alarm end or remote connection disconnected.
Power consumptionSleeping stand-by power: 0.03W;   Working: 1.3W@days/3W@night
PTZRotation angleN/A
Spinning speedN/A
OtherPower inputDC5V 2A
EnvironmentEnvironment -20℃~+60℃(-4℉~+140℉), Humidity 10%~80%, non-condensing

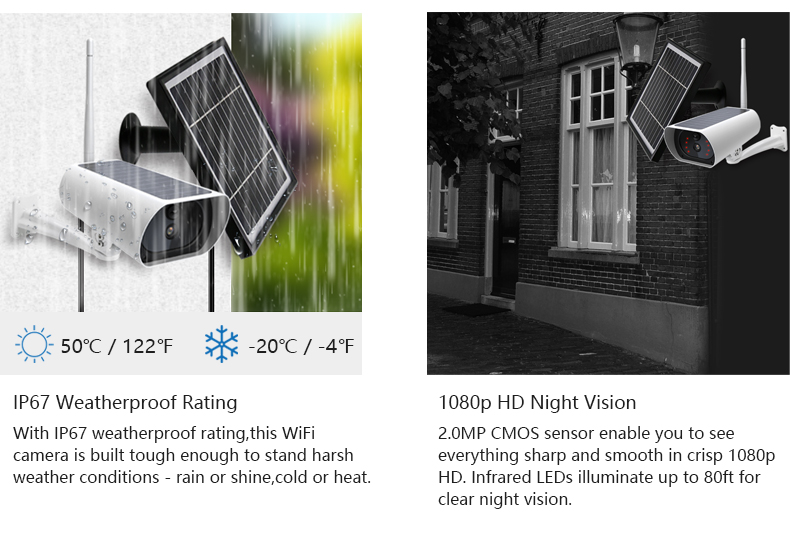

Shell materialMetal fireproof plastic material, vandal-proof, waterproof level IP67
Power cablePlate V8 interface, extension cable 3 meters
Product Size195mm×95mm×67mm(Camera:L×W×H);178mm×153mm×15mm(Plate:L×W×H)
Package dimensions253mmx209mmx108mm(L×W×H). Package weight: 1.57kg

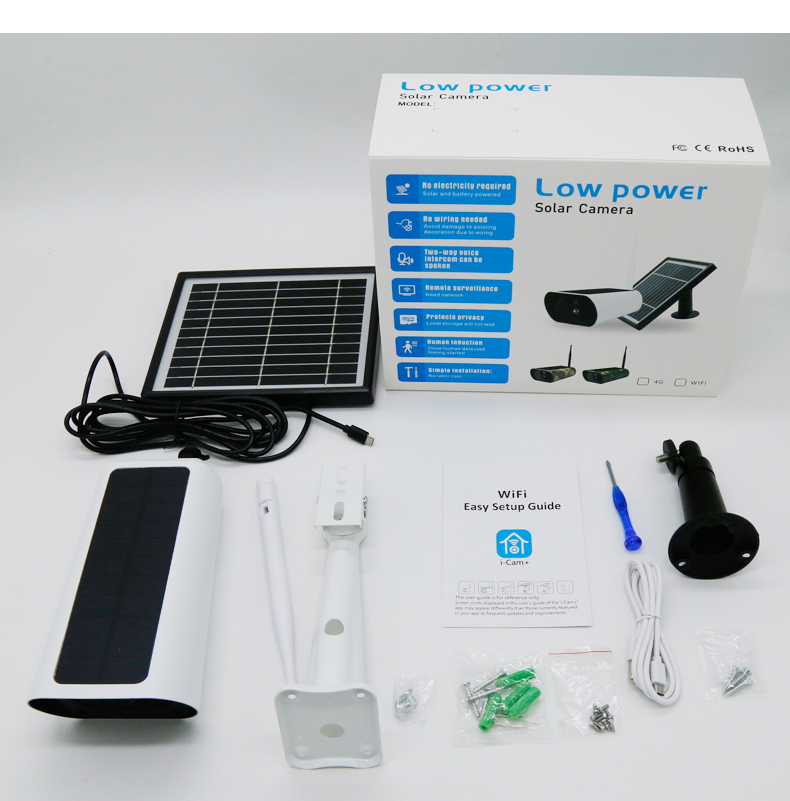

Packing listIP Camera, Antenna, Solar panel, Support, Mounting screws, Screwdriver, USB cable, Manual

Y9新详情图_01.jpgY9新详情图_04.jpgY9新详情图_05.jpgY9新详情图_06.jpgY9新详情图_09.jpgY9新详情图_07.jpgY9新详情图_08.jpgY9新详情图_10.jpg
