| Model: | SQ002-W-L |
| APP: | V380 Pro |
| System structure: | Embedded Linux system, ARM chip structure |
| Chip: | 1/4" SC1346*2 |
| Resolution: | 1+1=2MP |

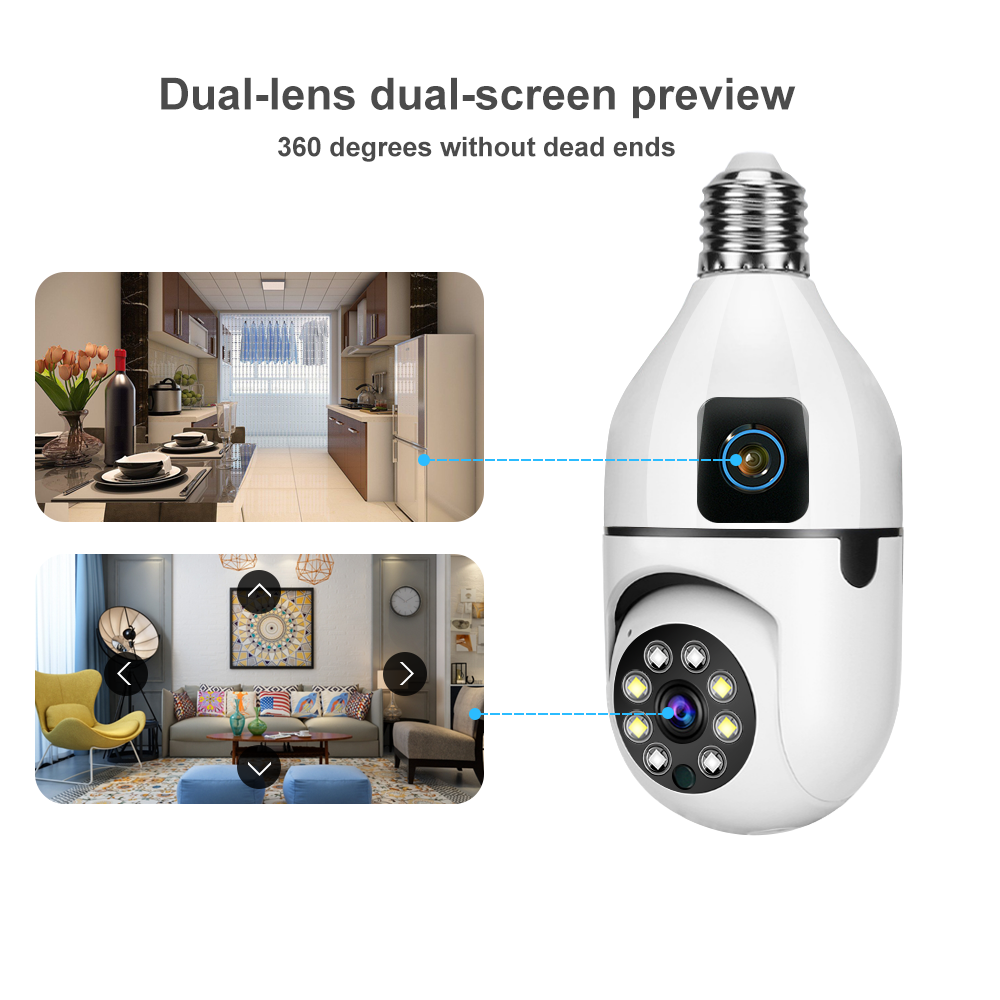

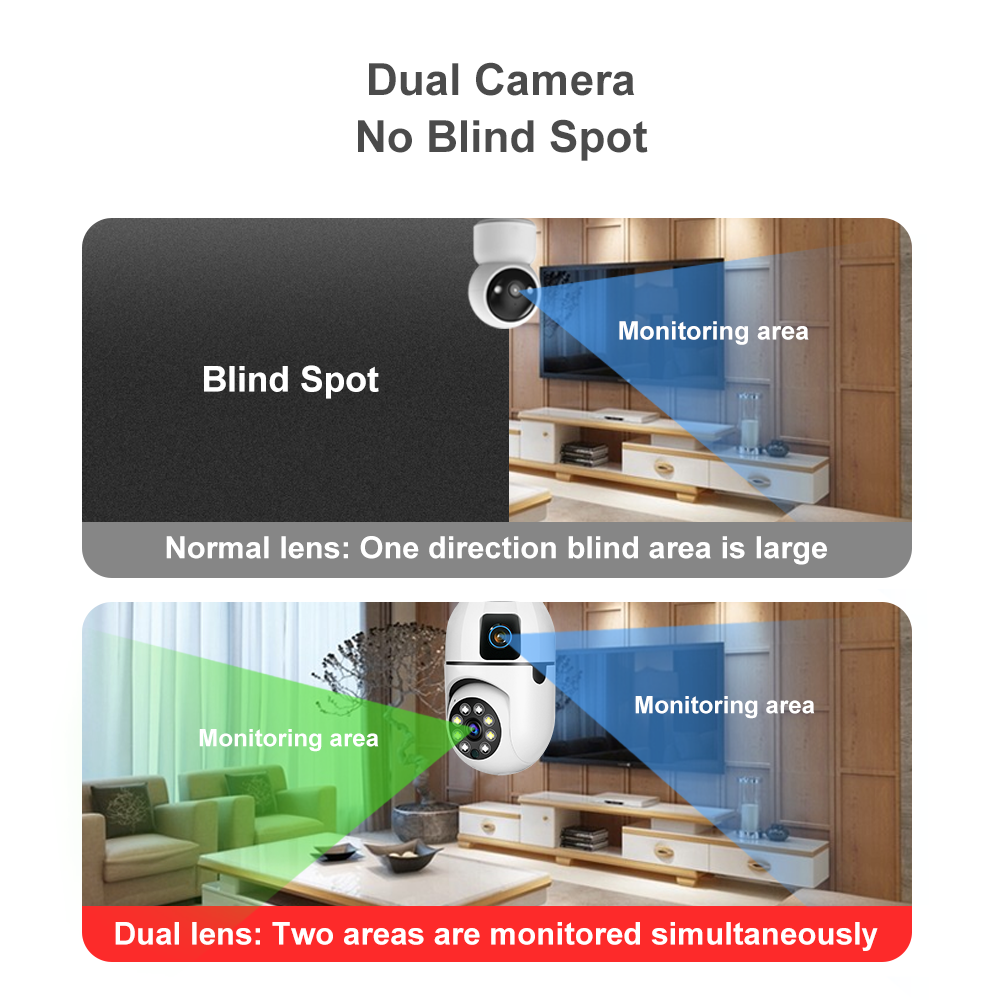

| Lens | 2*3.6MM |
| Pan-tilt: | Horizontal：355° Vertical：90° |
| Preset point quantity: | 6pcs |
| Video compression standard: | H.264/15FPS |
| Video format: | PAL |
| Minimum illumination: | 0.01Lux@（F2.0，VGC ON),O.Luxwith IR |
| Electronic shutter: | Auto |
| Backlight compensation： | Support |
| Noise reduction: | 2D、3D |
| Infrared LED: | PT indoor camera: 4pcs infrared LED + 4pcs White LED
Bullet camera: 4pcs infrared LED |
| Network connection: | Support WIFI, AP hotspot (without RJ45 Network port) |
| Network: | 2.4G Wi-Fi （Support IEEE802.11b/g/ N wireless protocol） |
| Night Version: | Dual Light switch automatic, 5-10 Meters（varies from environment） |
| Audio: | Built-in microphone and speaker, support two-way real-time audio transmission. ADPCM audio compression standard, self-adaptive stream code |
| Network protocol: | TCP/IP、UDP、HTTP
DDNS、DHCP、FTP、NTP |
| Alarm: | ①Motion detection, picture push ②Human intrusion Detection (optional) |

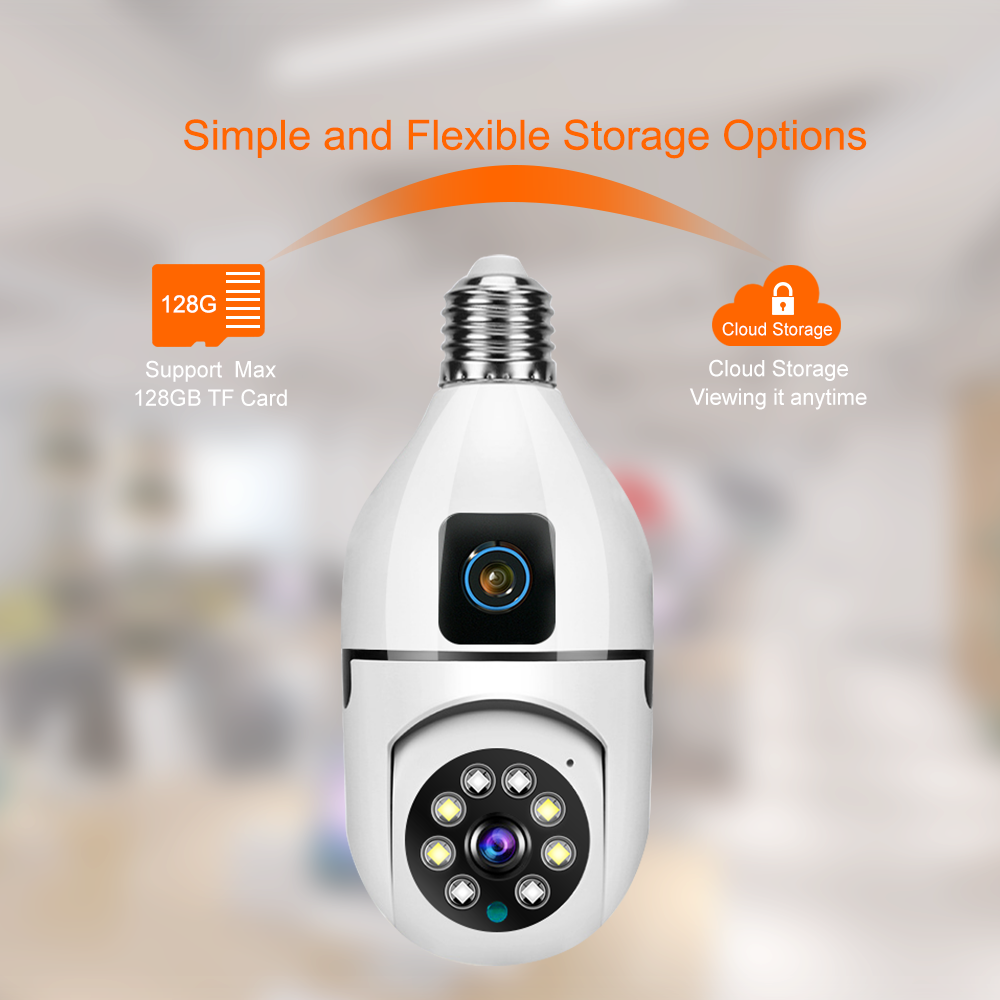

| Storage: | TF Card（Max 128G）；Cloud storage (optional) |
| Power input: | 110-240V AC power |
| Work environment: | Working temperature:-10℃ ~ + 50℃ Working Humidity: ≤95%RH |
