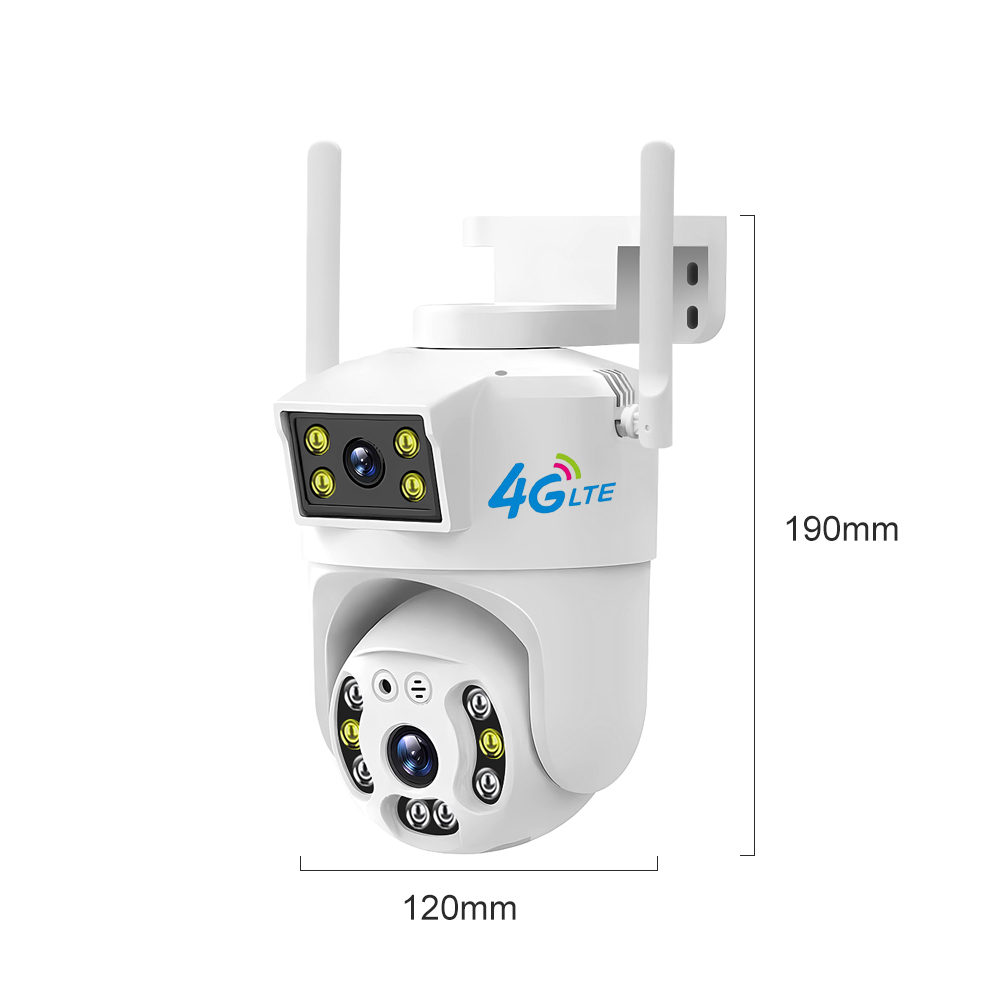

| Model: | SC06-W |
| APP: | V380 Pro |
| System structure: | Embedded Linux system, ARM chip structure |
| Chip: | KM01D |

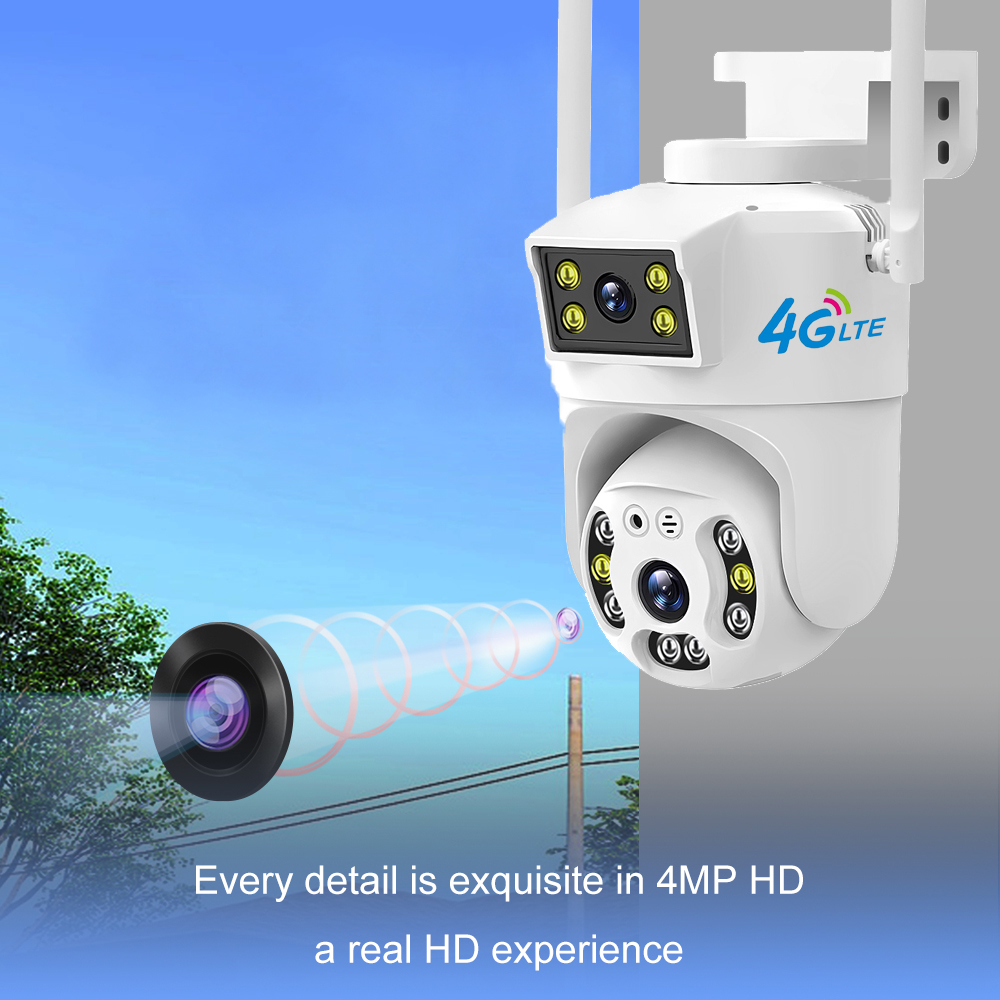

| Resolution: | 2+2=4MP |
| Sensor Resolution: | 1/2.9" MIS2008*2 |
| Lens: | 2*4MM |
| View angle: | 2*80° |

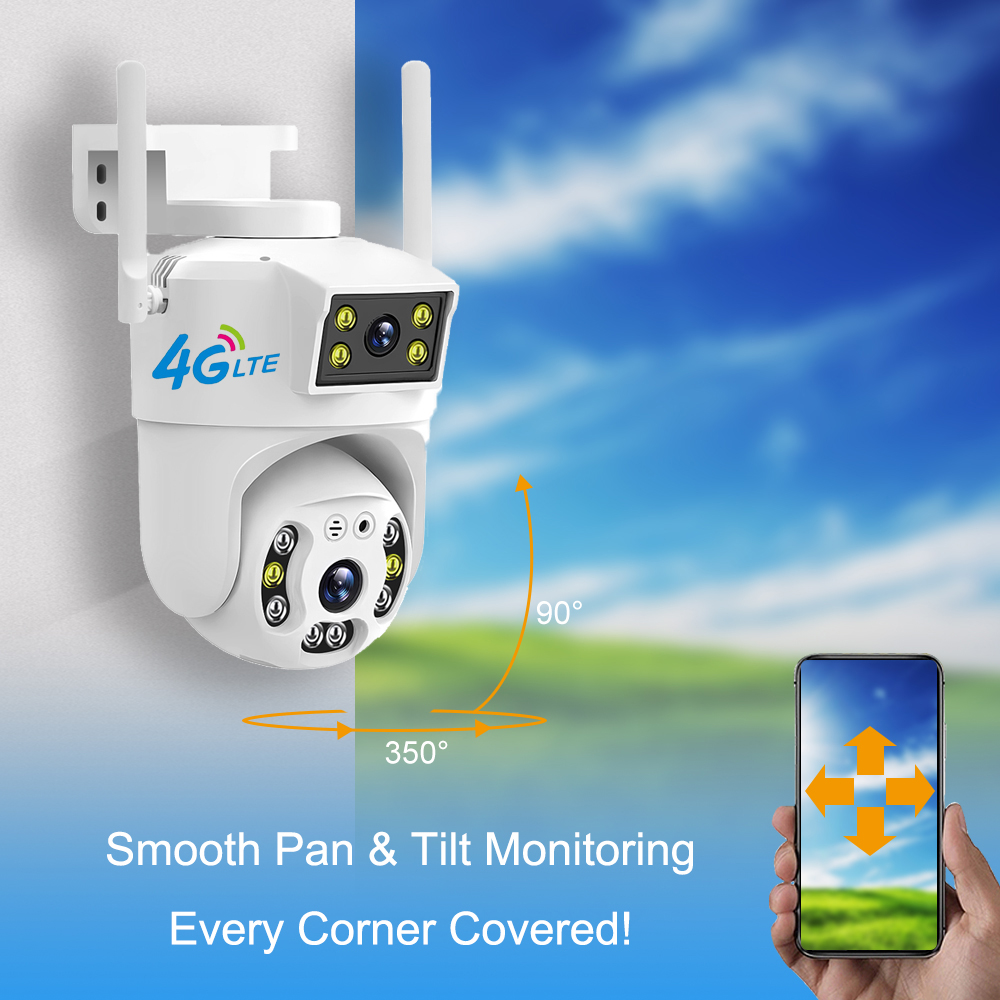

| Pan-tilt: | Rotates Horizontal:355° Vertical：90° |
| Preset point quantity: | 6 |
| Video compression standard: | H.265/15FPS |
| Video format: | PAL |
| Minimum illumination: | 0.01Lux@（F2.0，VGC ON),O.Luxwith IR |
| Electronic shutter: | Auto |
| Backlight compensation: | Support |
| Noise reduction: | 2D、3D |
| LED quantity: | Bullet camera:4pcs Dual Core LED
PTZ camera: 4pcs White LED + 4pcs Infrared LED |
| Network: | WIFI wireless transmission (support IEEE802.11b/g/n wireless protocol). |
| Network connection: | WIFI, AP Hotspot, RJ45 Network port |

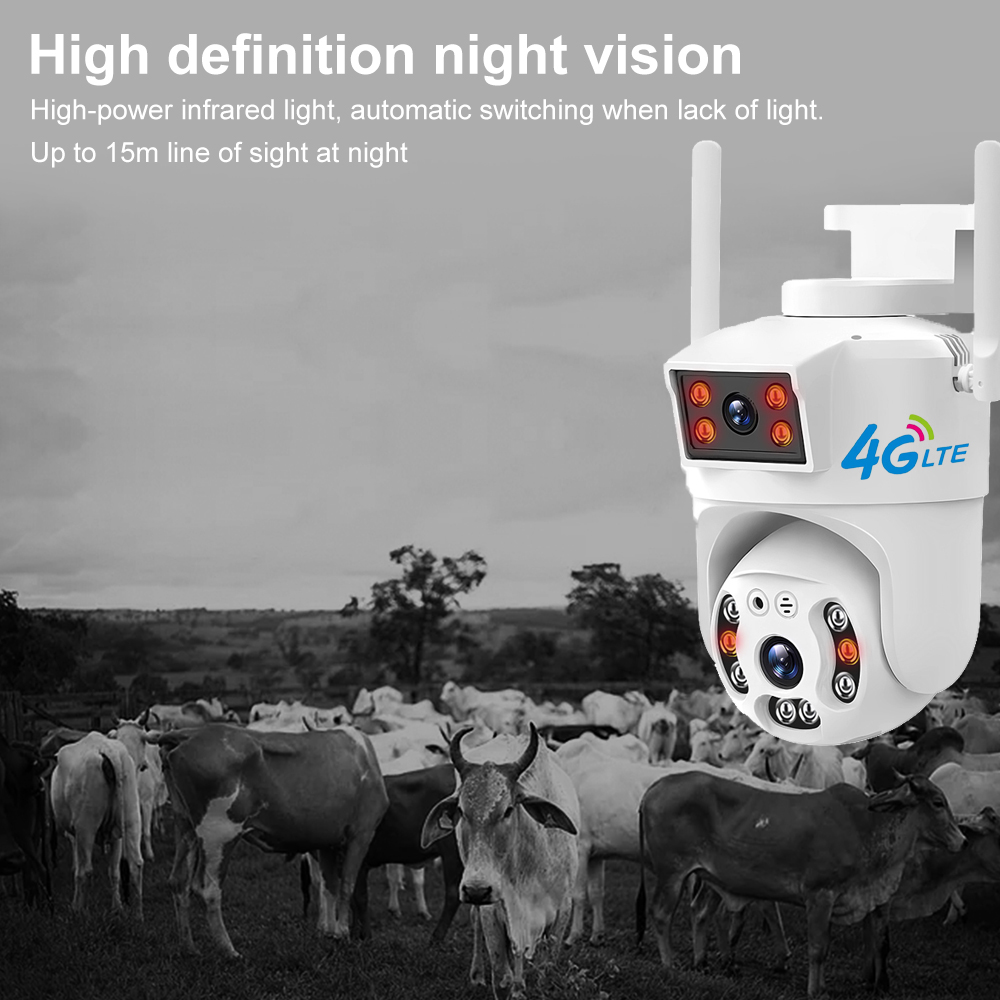

| Night vision: | IR-CUT switch Automatic，about 5-8meters (It varies from environment)
White Led can be remote control via APP:①Turn ON ②Turn OFF ③ Auto
(In automatic mode, the infrared light will be turned ON after the IR-cut switch to night vision automatically , it can intelligently detected human body, and Turn ON/OFF the White light intelligently ) |

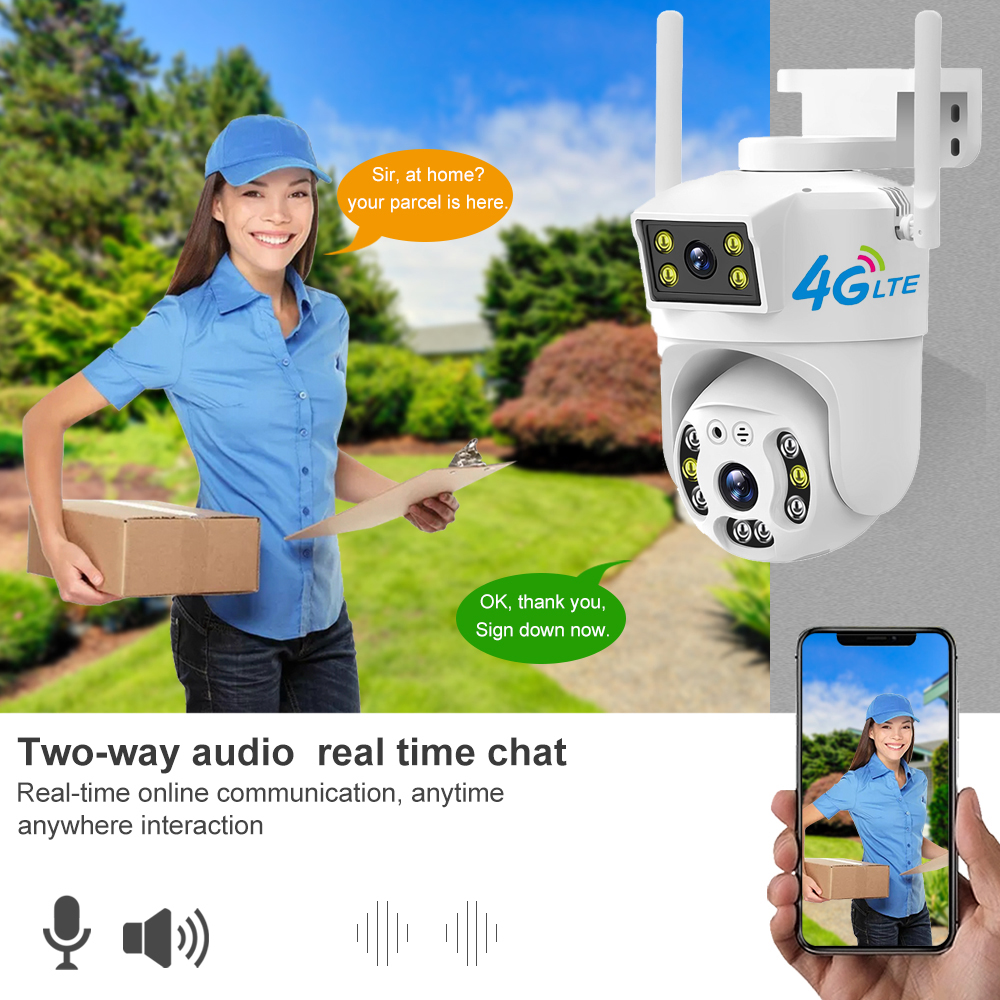

| Audio: | Built-in microphone and speaker, support two-way audio and real-time transmission.
ADPCM audio compression standard, self-adapt to code stream |
| Network protocol: | TCP/IP、 DDNS、DHCP |

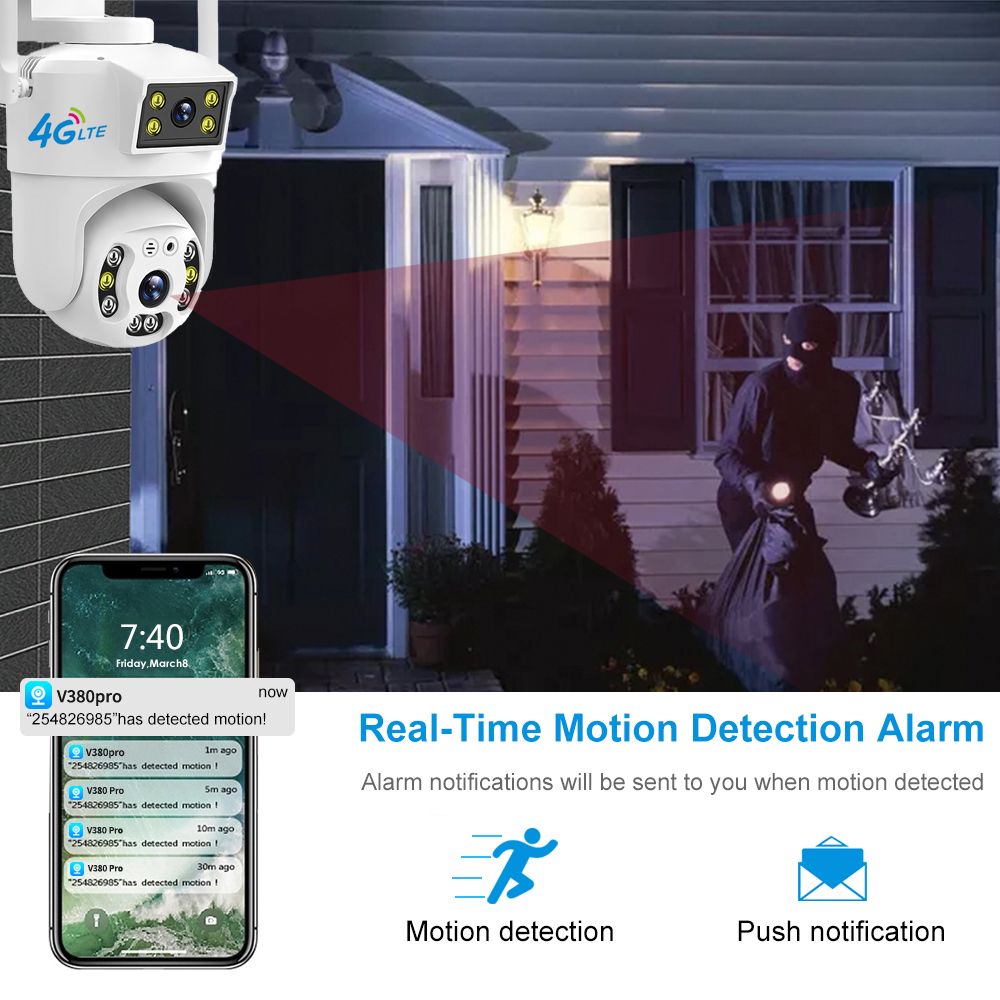

| Alarm: | ①Motion detection and picture push ②AI Human intrusion Detection |
| ONVIF | ONVIF(option) |
| Storage: | TF Card（Max 128G）；Cloud storage /Cloud disk (optional) |
| Power input: | 12V/2A (not including power supply) |
| Work environment: | Working temperature:-10℃ ~ + 50℃ Working Humidity: ≤95%RH |
