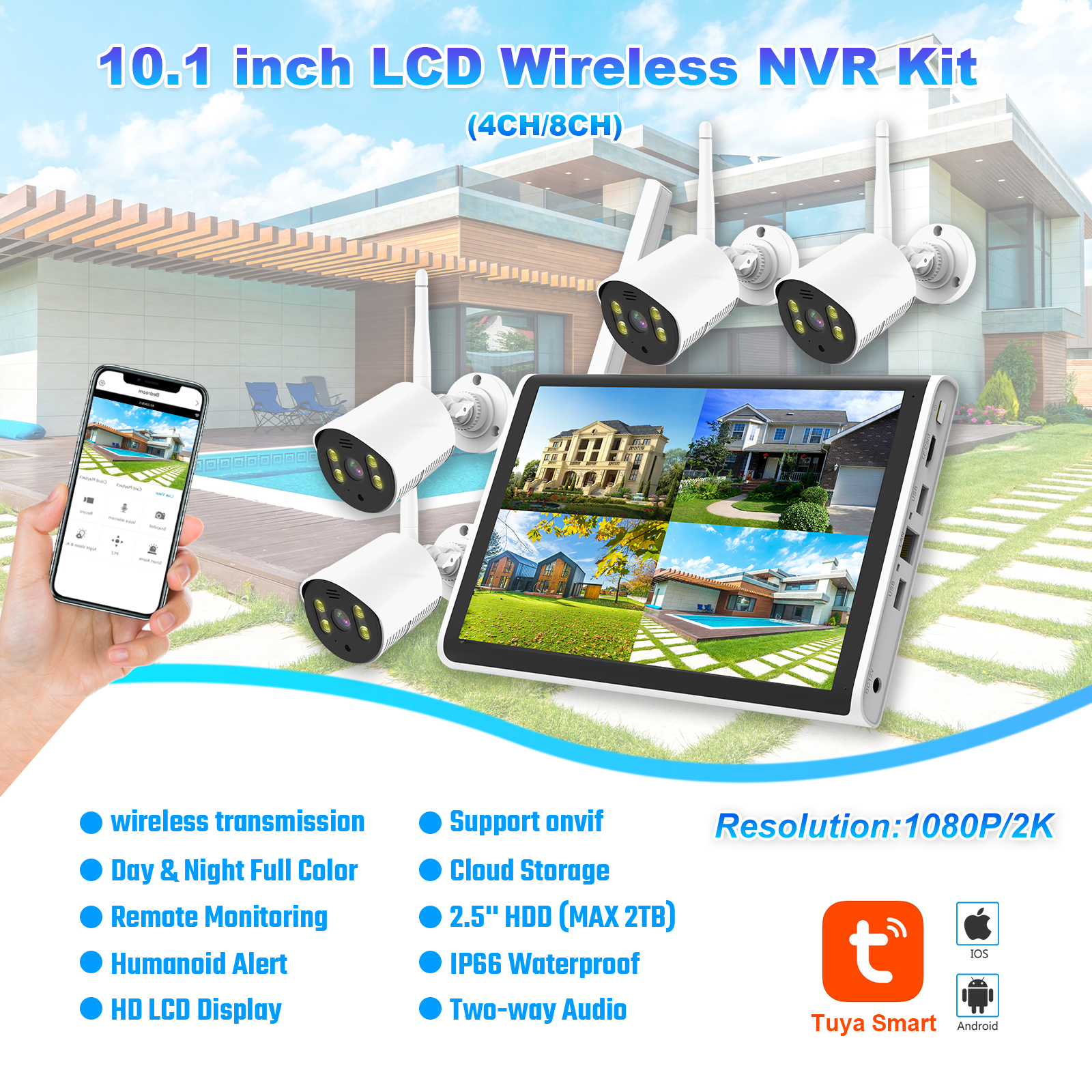

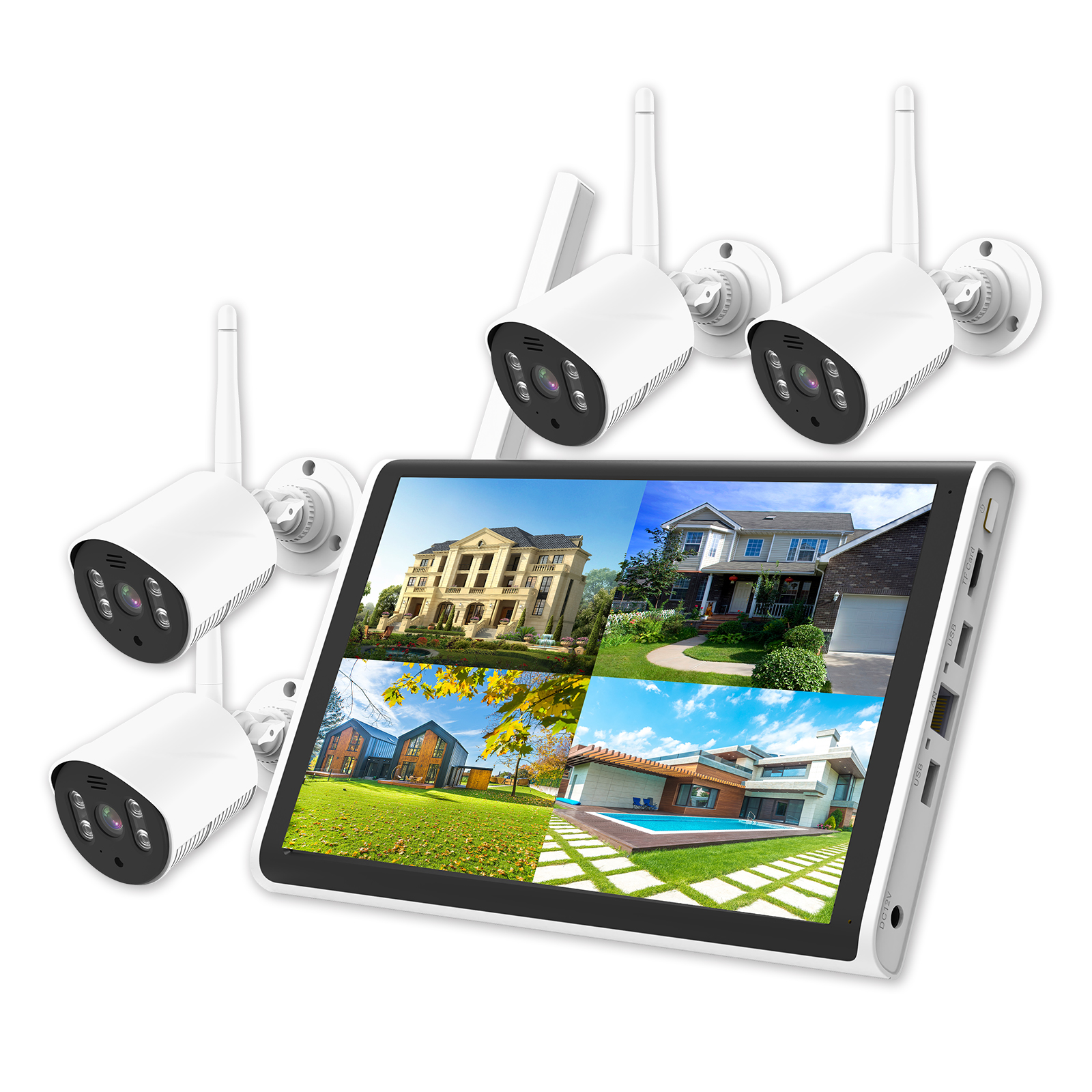

| WiFi NVR Specification |
| System | Main processor | XM8516D |
| screen | 10.1 inch 1280*800 |
| Operating System | Embedded Linux |
| System resources | Simultaneous multi-channel real-time recording, playback, network operation, USB backup |
| Interface | Operator interface | 16-bit true color graphic menu operation interface, support mouse operation |
| Preview | 1/4 |
| Video input (IP) | 4*3MP |
| Access bandwidth | 24Mbps |
| Forwarding bandwidth | 24Mbps |
| Video compression | H.265+ |
| Display quality | Max 3MP |
| Playback quality | 3MP |
| Decode | 4*3MP |
| VR | Unsupport |
| Motion detection | Support(depend on camera) |
| Audio | Audio compression | G.711A |
| Intercom | Unsupport |
| Record & playback | Recording mode | Manual>Alarm>Dynamic Detection>Timing |
| Local payback | 4*3MP |
| Search mode | Search by Time/Calendar/Event/Channel |
| Record storage | HDD、Network,SD card |
| Backup mode | Network backup, USB hard disk, USB burner, |
External
Interface | Video output | 1ch HDMI HD output |
| Audio I/O | 0/0 |
| Alarm I/O | 0/0 |

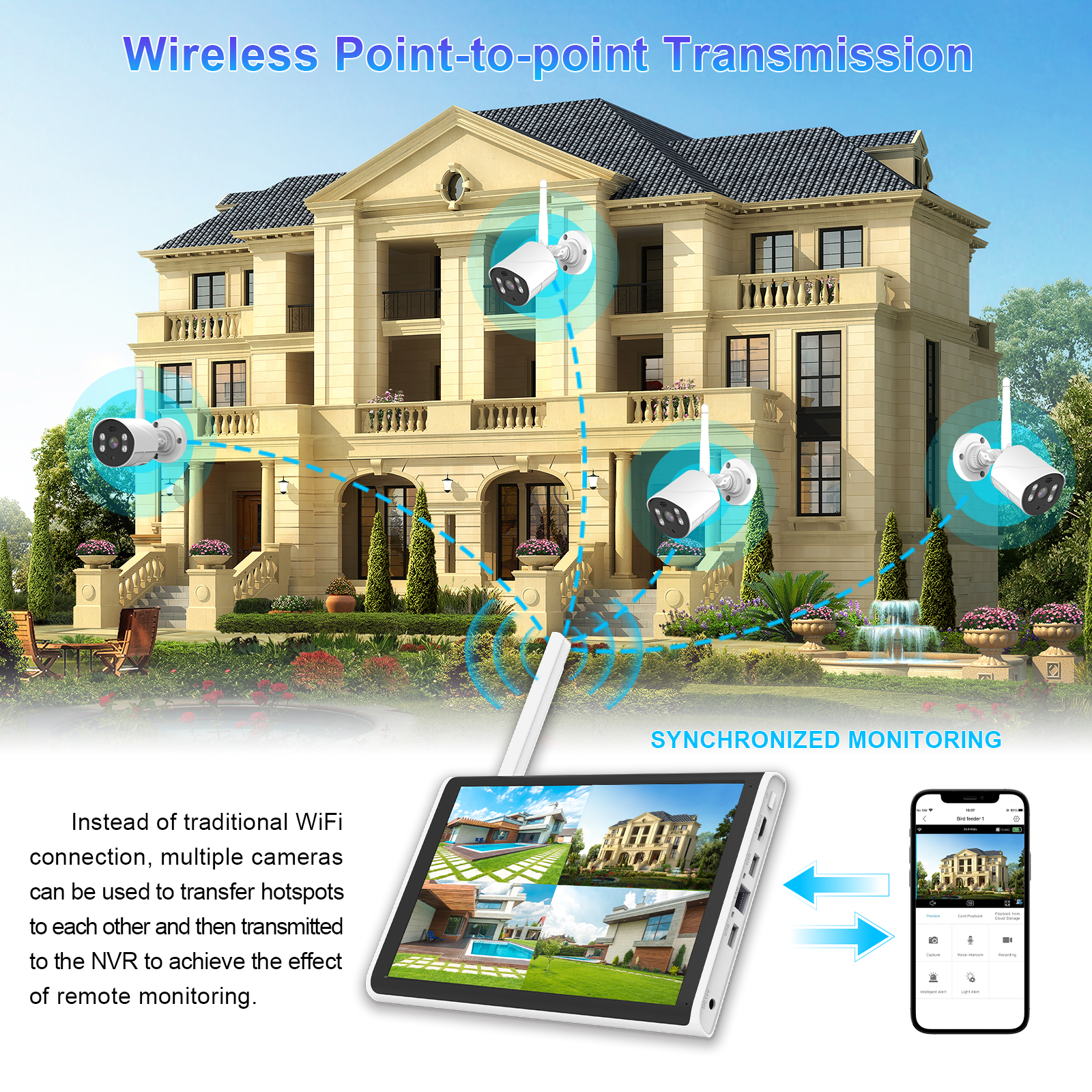

| Network interface | 1*RJ45 10M/100M Adaptive Ethernet port+4ch WIFI |
| USB interface | 2*USB2.0 ports |
| HDD | 1* SATA+1 SD card |
| ESATA | No |
| Serial interface | No |
| Other | ONVIF | No |
| Power supply | DC 12V2A |
| Power Consumption | <10W(Without HDD) |
|
|
|
| WiFi Camera Specification |
| To configure | Processor + sensor | XM530V200 Ai+3.0MP 1/3"Q03 CMOS sensor |
| Low illumination | Color: 0.1 Lux; B/W: 0.01 Lux |
| Effective pixel | HD 3MP |
| Lens | HD lens 3.6MM |
| Infrared lamp | 4pcs X ￠5 Lamp beads |
| Infrared distance | 150~200m |
| Day&night | IR cut filter with auto switch |
| General | setting | Saturation, brightness and contrast ;
are adjustable through IE browser or client software. |
|
| Video compression | H.265+ |
| temperature | -10℃-＋60℃ |
| humidity | 10%-90% RH |
| Power supply | DC12V 1A |
| Consumption | MAX 6W |
| Waterproof grade | IP66 |
| Dimension | 252*162*22 mm |
| Weight | 0.7 kg |
